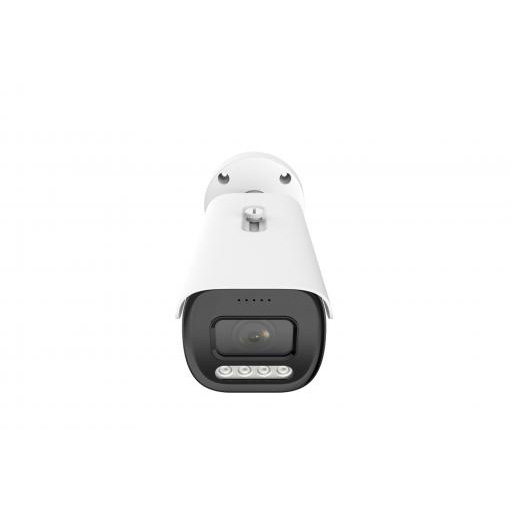

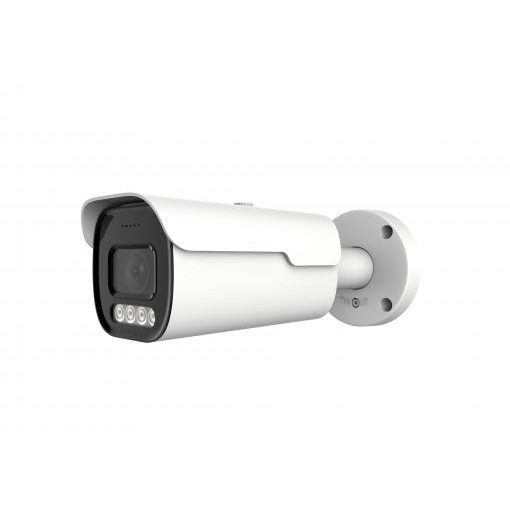

UVIC-5WB21M [5MP IP]

UVIC-5WB21M [5MP IP]

  • •    High quality imaging with 4MP resolution;
  • •    1/2.8″SONY Starvis Back-illuminated CMOS Sensor;
  • •    Support H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG Compression ;
  • •    2.7-13.5mm Motor Zoom;
  • •    minimum Illumination:0.01Lux,Infrared Distance:40m;
  • •    Support Face Detection, Intrusion Detection, Line Cross Detection, Loiter Detection, People Gather Detection,motion detection based on human detection;
  • •    Support HDR: 120dB;
  • •    Housing: Metal, IP67;
Category: Tag:

Description

Image Sensor 1/2.8″ SONY Starvis Back-illuminated CMOS sensor
Resolution 4MP
Effective Pixels 2616 (H) x 1964 (V)
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
Minimun Illumination 0.01Lux
S/N Ratio ≥52dB
Scanning System Progressive
Video Output Network
Reset Button Optional
Lens
Focus Length 2.7-13.5mm Motor Zoom
Focus Control Auto
Lens Type Auto
Pixels 4MP
Night Vision
Infrared LED 42µ x 4PCS
Infrared Distance 40M
IR Status Auto Control
IR Power On Smart, Manual & Timed mode
Network
Ethernet RJ-45 (10/100Base-T)
Wireless /
Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,  RTCP ,PPPoE, NTP,  SMTP, UDP, SNMP
ONVIF Support ONVIF 19.12(Profile S/T/G)
P2P YES, Support QR Code
POE Optional/Internal, Support IEEE 802.3af
Video Delay 0.3S (Within the Lan)
Main Stream 1 2592*1944@30fp
Main Stream 2 2560*1440@30fp
Main Stream 3 1920*1080@30fps
1280*720@30fps
Sub Stream 1 1280*720@30fps
720*480@30fps
Sub Stream 2 352*288@30fps
Sub Stream 3 /
Tri Stream 1280*720@30fps
720*480@30fps
352*288@30fps
IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
Smart Phone iPhone, iPad, Android, Android Pad
